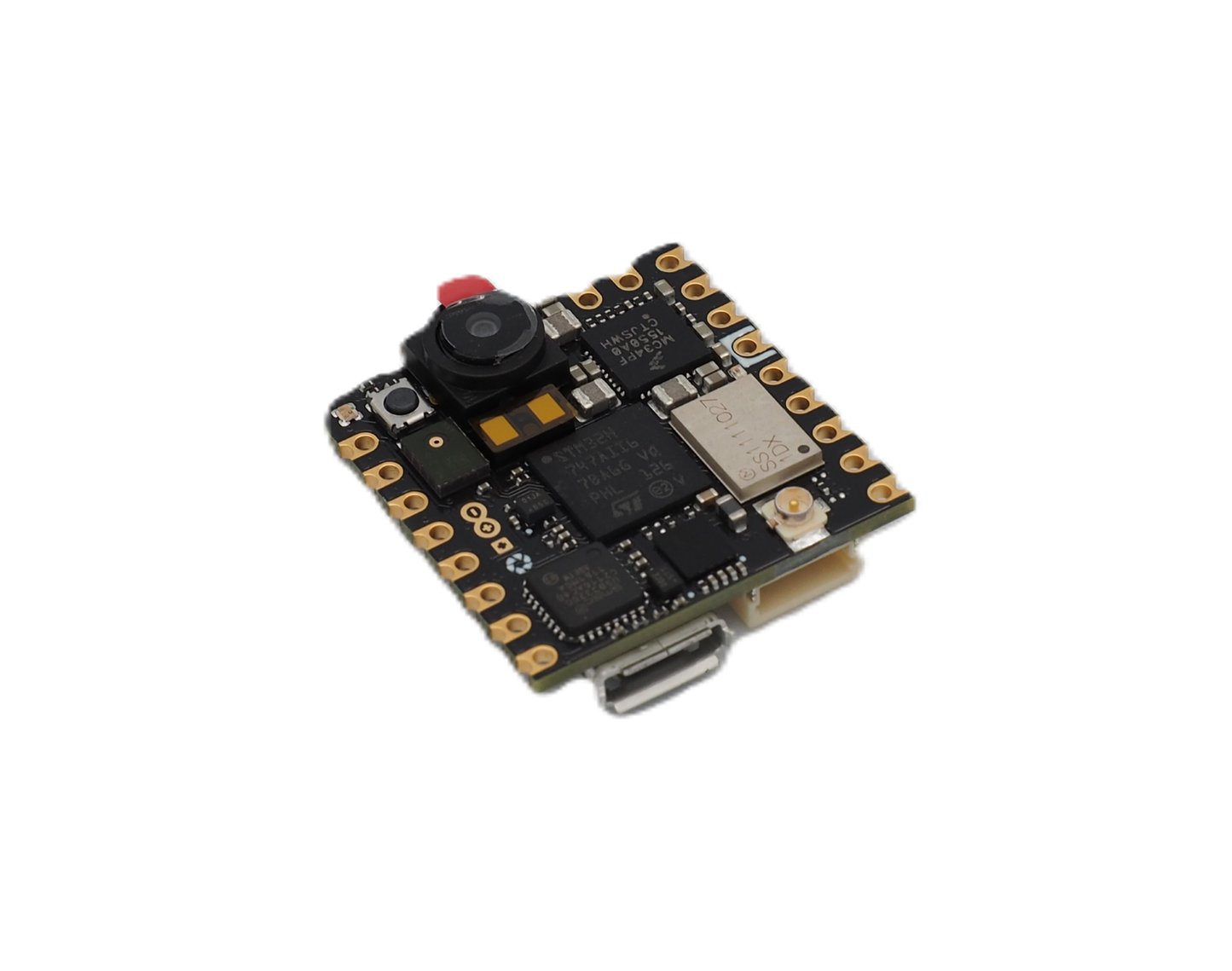

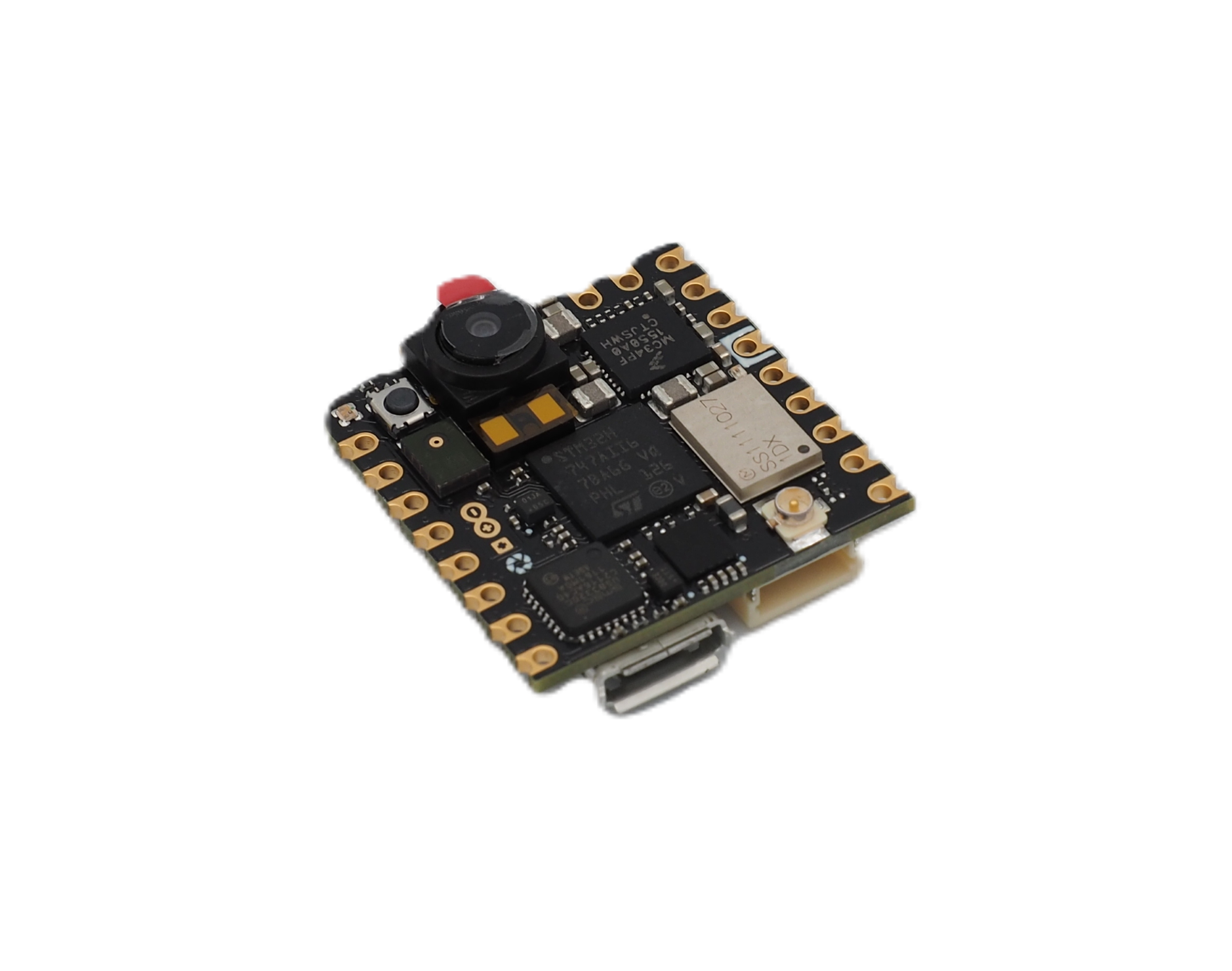

Nicla Vision

The Arduino Nicla Vision (ABX-00051) is a compact, powerful machine vision module designed for edge AI applications. Built around a dual-core STM32H747 processor and paired with a 2MP color camera, it lets you run computer vision and machine learning models directly on the device — no cloud required.

Key Features

• MCU: STM32H747AII6 — Arm Cortex-M7 @ 480MHz + Cortex-M4 @ 240MHz
• Camera: 2MP color camera (GC2145) with QVGA to full 2MP resolution
• AI/ML: On-device inference via Arduino Edge Impulse integration
• Distance Sensor: VL53L1CBV0FY/1 Time-of-Flight sensor (up to 4m range)
• IMU: 6-axis IMU (LSM6DSOX) — accelerometer + gyroscope
• Microphone: MP34DT05 digital MEMS microphone
• Wireless: Wi-Fi 802.11b/g/n & Bluetooth 5.1 (ANNA-B112)
• Memory: 1MB Flash + 1MB RAM (MCU) + 16MB external QSPI Flash
• Interface: ESLOV connector (I2C), SPI, UART, GPIO via castellated pads
• Power: 3.3V via USB or battery connector (LiPo compatible)
• Form Factor: 22.86mm × 22.86mm — ultra-compact castellated module

What's Included

• 1× Arduino Nicla Vision board (ABX-00051)

Ideal For

Object detection, gesture recognition, anomaly detection, predictive maintenance, and any embedded vision application where size, power efficiency, and on-device AI matter. Pairs seamlessly with other Arduino Nicla and MKR family boards via the ESLOV connector.
