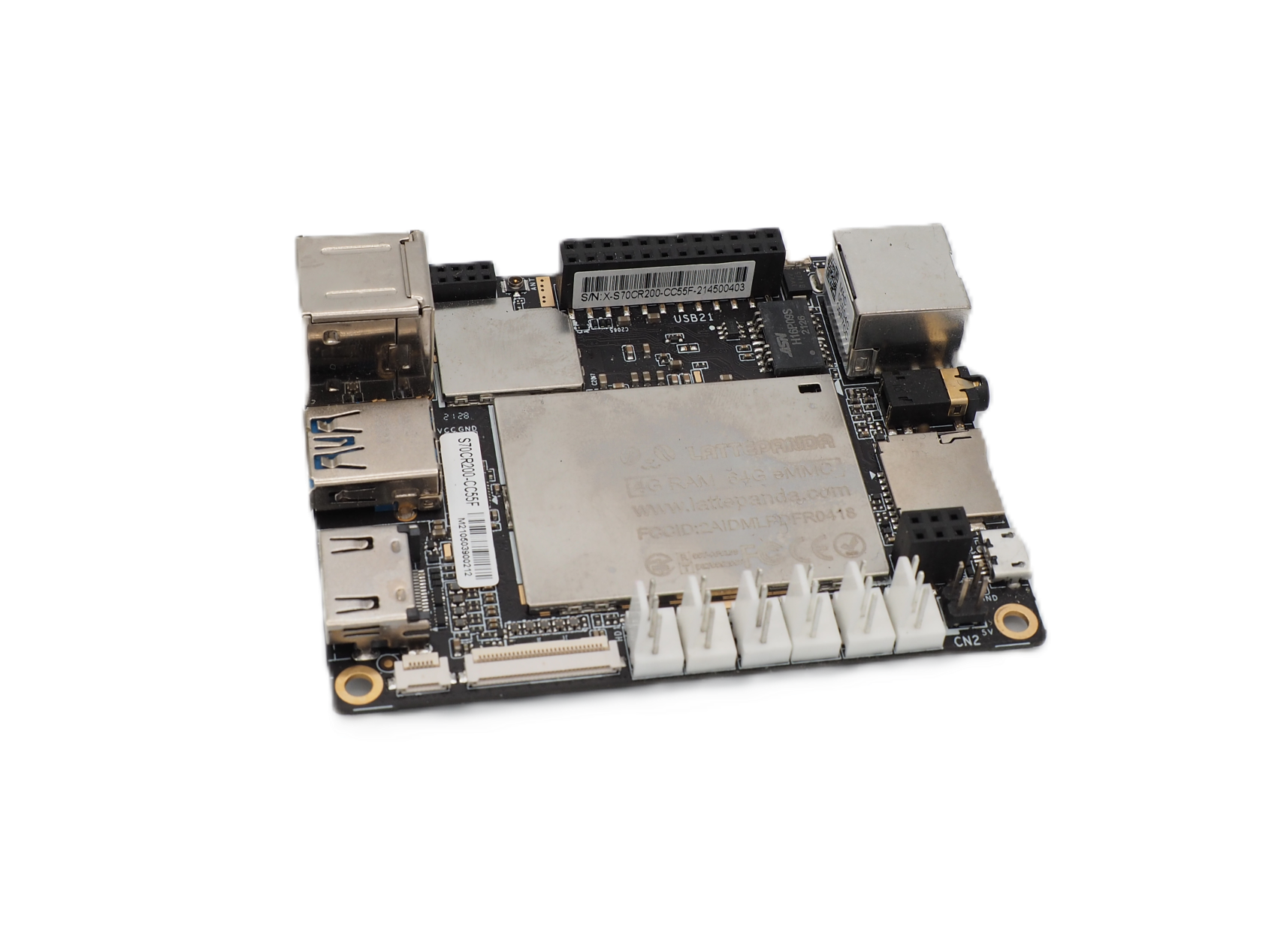

LattePanda V1 - The Smallest x86 Windows Single Board Computer

The LattePanda V1 (4GB RAM / 64GB eMMC) is the smallest full-featured x86 Windows single-board computer, packing a complete PC into a credit-card-sized board. This top-spec configuration gives you maximum memory and storage for demanding applications — run full Windows 10 or Linux, connect standard peripherals, and build real desktop-class software, all from a board that fits in your hand.

Key Features

• CPU: Intel Cherry Trail Z8350 quad-core @ up to 1.92GHz (64-bit x86)
• RAM: 4GB LPDDR3
• Storage: 64GB eMMC + MicroSD card slot
• OS: Windows 10 or Linux compatible (OS not included)
• Display: HDMI + MIPI DSI connector for LattePanda touchscreen
• USB: 3× USB 3.0 Type-A ports
• Networking: 100Mbps Ethernet, Wi-Fi 802.11b/g/n, Bluetooth 4.0
• Co-processor: ATmega32U4 Arduino-compatible MCU for GPIO/PWM/analog I/O
• GPIO: 20-pin Arduino-compatible header (digital, analog, PWM, I2C, SPI, UART)
• Power: 5V/2A via USB Type-C
• Form Factor: 88mm × 70mm

What's Included

• 1× LattePanda V1 board (4GB RAM / 64GB eMMC)

Ideal For

Industrial automation, digital signage, robotics control, IoT gateways, and any project that demands full x86 Windows compatibility in a compact embedded form factor. The built-in Arduino co-processor makes it uniquely suited for hardware interfacing alongside full PC software stacks.
