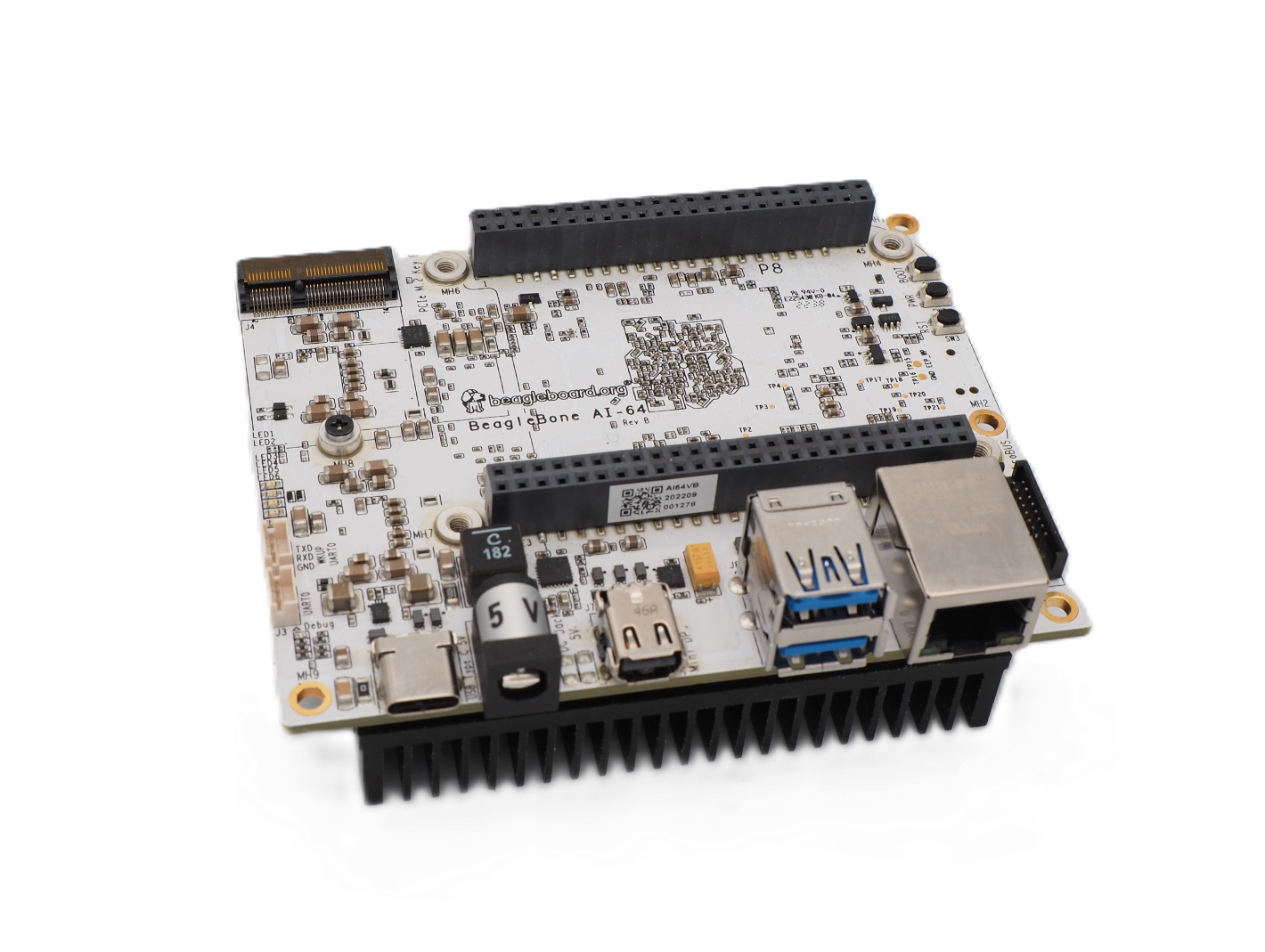

BeagleBone AI-64

The BeagleBone AI-64 is a powerful open-source single-board computer built around the Texas Instruments TDA4VM system-on-chip — the same processor family used in automotive ADAS applications. It brings serious edge AI and computer vision capabilities to the maker and embedded developer community in a familiar BeagleBone form factor.

Key Features

• SoC: Texas Instruments TDA4VM — dual-core Arm Cortex-A72 @ 2GHz + dual Cortex-R5F + C7x DSP + MMA (Matrix Multiply Accelerator)
• AI Performance: Up to 8 TOPS (tera operations per second) for deep learning inference
• RAM: 4GB LPDDR4
• Storage: 16GB eMMC + MicroSD card slot
• Display: 2× MIPI DSI (up to 4K), 1× DisplayPort via USB-C
• Camera: 2× MIPI CSI-2 camera inputs
• USB: 2× USB 3.1 Type-A + 1× USB-C (DisplayPort + power)
• Networking: Gigabit Ethernet, Wi-Fi 802.11ac, Bluetooth 5.0 (M.2 module)
• Expansion: 2× BeagleBone cape headers (backward compatible), M.2 Key-E slot, mini PCIe
• GPIO: Compatible with existing BeagleBone capes and accessories
• OS: Debian Linux (pre-installed)
• Power: 5V/3A via USB-C

What's Included

• 1× BeagleBone AI-64 board

Ideal For

Edge AI inference, computer vision pipelines, robotics, autonomous systems prototyping, and industrial automation. The TDA4VM’s MMA accelerator and C7x DSP make it exceptionally well-suited for running TensorFlow Lite, ONNX, and TI’s EdgeAI SDK workloads at the edge with minimal power consumption.
